- 2 to 6 Door Interlocking System NC type ( door closed and Locked )
2 to 6 Door Interlocking System NC type ( door closed and Locked )

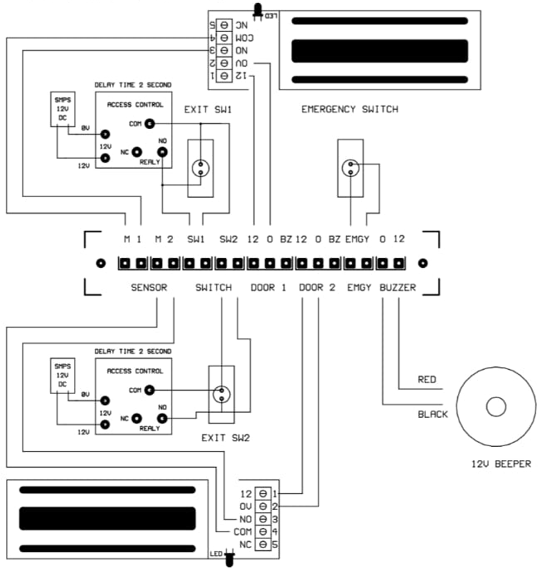

TWO DOOR ENTERLOCKING SYSTEM DATA SHEET
DOOR CONDITION: NORMALLY CLOSED AND LOCKED
DOOR SIZE: 6.5 FEET X 2.5 FEET (NORMAL SIZE DOOR)
TYPES OF DOOR: WOODEN, GLASS, OR ALUMINIUM DOOR
TYPES OF LOCK:SURFACE MOUNT 280KG E.M. LOCK WITH INBUILT MAGNETIC SENSOR.
ABOUT E.M. LOCK
DIMENTION : L= 250 MM X H= 47 MM X D= 27.5 MM
SUPPLY VOLTAGE: 12/24 VOLT DC
POWER CONSUMPTION: 440 MA AT 12V DC. 220 MA AT 24V DC.
LED INDICATION : RED EM. LOCK ENERGIZED BUT DOOR WAS UNLOCKED
GREEN: E.M. LOCK ENERGISED AND DOOR WAS LOCKED
SYSTEM CONCEPT: IN NORMAL CONDITION BOTH DOOR ARE CLOSED AND LOCKED IF ANY ONE DOOR WILL OPEN BY ITS EXIT SWITCH OTHER DOOR WILL NOT OPEN TILL THAT DOOR DELAY TIME IS OVER AND THAT DOOR WAS CLOSED AND LOCKED
LED AND BUZZER STATUS:
RED: DOOR IS CLOSED BUT NOT LOCKED
GREEN : DOOR IS CLOSED AND LOCKED
EMERGENCY SWITCH FUNCTION: IF ANY ONE DOOR WILL OPEN BY ITS EXIT SWITCH OTHER DOOR WILL CLOSED AND LOCKED TILL THAT DOOR WILL AGAIN CLOSED AND LOCKED BUT IF THAT DOOR WILL NOT CLOSED AND LOCKED, AT THE TIME OTHER DOOR WILL OPENING BY EMERGENCY SWITCH IF PRESSING EMERGENCY SWITCH BOTH DOOR WILL OPEN 1 SECOND TO 15 SECOND VERIABLE DELAYTIME PRESET SET BY YOU AND IF BOTH DOOR WILL CLOSED AND LOCKED SYSTEM WILL GO ITS NORMAL MODE IF SW1 OR SW2 PRESSING 5 SECOND BOTH DOOR WILL OPEN TILL AGAIN SW1 OR SW2 PRESSING 5 SECOND, IF BOTH DOOR HILL CLOSED AND LOCKED, SYSTEM WILL GO ITS NORMAL MODE
BUZZER SOUND: IF ANY ONE DOOR WILL OPEN AND IT WILL NOT CLOSED AND LOCKED AFTER ITS DELAY TIME WILL OVER START BUZZER SOUND TIMER 33 SECOND TO § MINUTE AFTER BUZZER SOUND DELAY TIME WILL OUER BUZZER SOUND WILL START TILL THAT DOOR HILL NOT CLOSE AND LOCK

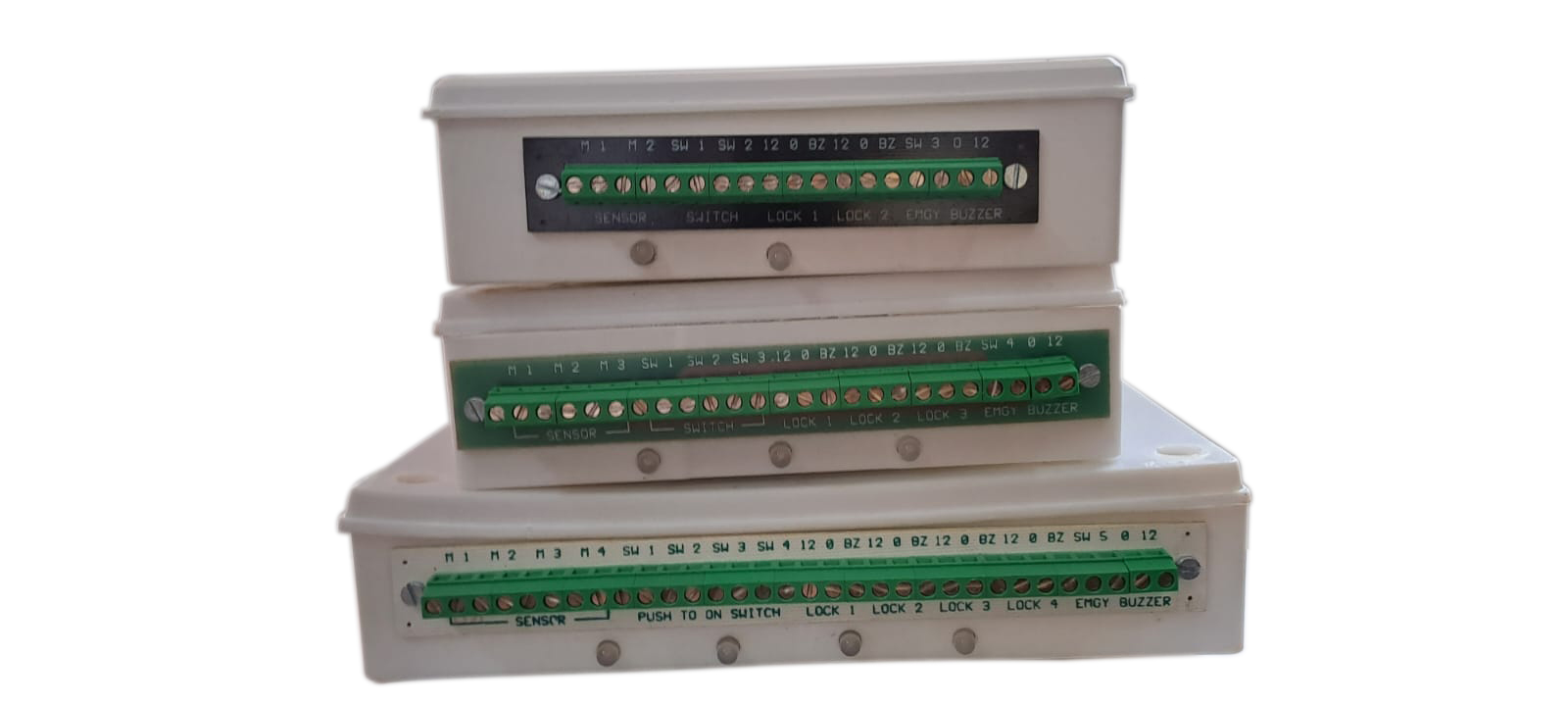

Weight:
1) 2 Door Controller = 450gm
2) 3 Door Controller = 525gm
3) 5 Door Controller = 550gm
6) 6 Door Controller = 600gm.
