Heavy Duty Mini Drop Bolt Lock 12/24V Dc (Fail Secure)

Megatronics is listed in Trade India’s list of verified sellers offering supreme quality of Openable Type Electro Magnetic Locks ,Double Door Electro Magnetic Locks ,Mini Conceal Type Electro Magnetic Locks etc.

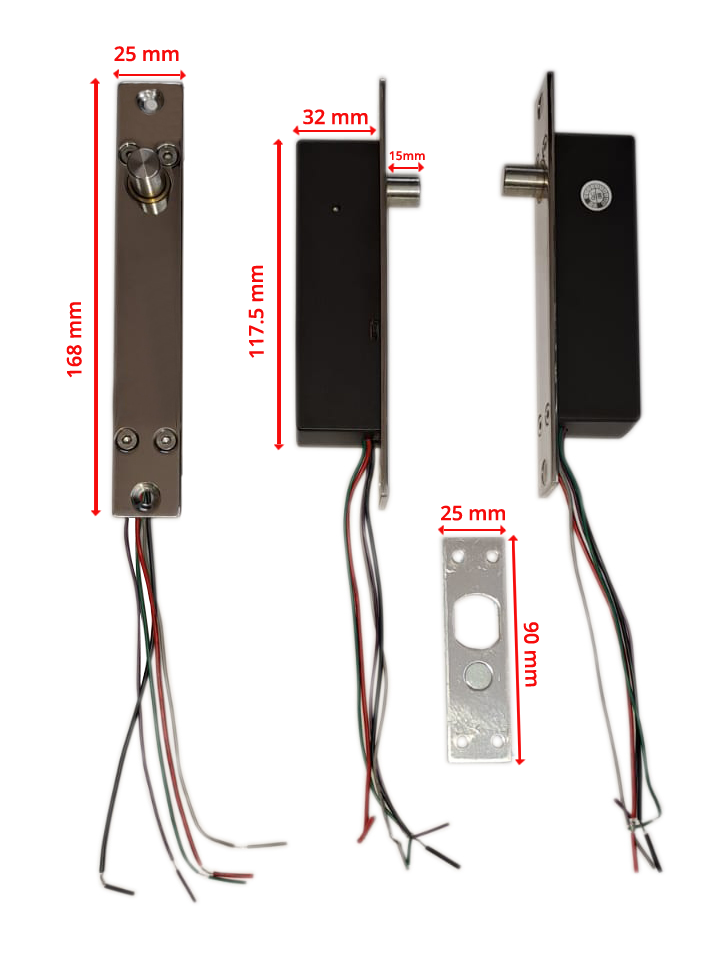

Heavy Duty Mini Drop Bolt Lock 12/24 V.DC (Fail Secure)

Red : +12/24 V DC
Black : OV.
Green : Feed Back Sensor Output COM.
Gray :Feed Back Sensor Output NO.
Violet : Switch press to open with Red Wire.
Start Current : 1.2 Amp.
Stand By Current : 150 ma.
Time delay : 0-3-6 Second.
Working : Fail secure. Working with any Access control and PLC Systems.
Use : Heavy Aluminium Wooden and Metal Door.
Lock Core : The Diameter 12.5 mm Stainless core Extending the Length of 15mm.
Weight: 550gm.

The supplier & Distributor company is located in Mumbai, Maharashtra and is one of the leading sellers of listed products.
